Location:
Bensenville, IL

Specifications

Condition:
used
Stock number:
64484
Hp:
100
Gallons:
550
Material:
Carbon Steel
Blade type:
Sigma
Subcategory:
Mixers
Subcategory 2:
Double arm mixers

Description

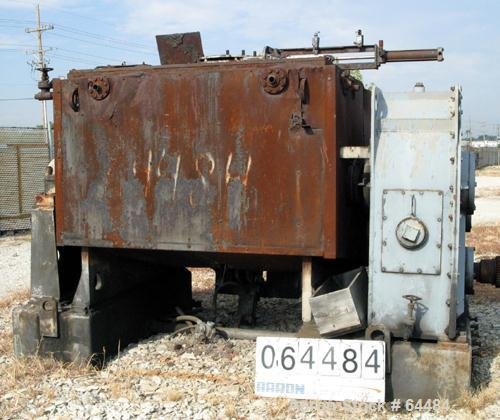

64484 Used- Teledyne Readco Split Level Double Arm Mixer, 550 Gallon Working Capacity, Carbon Steel. Insulated, jacketed bowl. 70" front to back x 70" left to right. Overlapping sigma blades, geared one end. Flat bolt on top cover with a 12" slide valve. 14" x 20" side bottom outlet with a single ram hydraulically operated door (no power pack). Mixer driven by a 100 hp, 3/60/230/460 volt, 1780 rpm motor thru a Falk reducer, ratio 16.96:1, thru a split level reducer (no tag). Approximate blade speeds, upper 31/7, lower 17.4. Unit is base mounted.
