Location:
Bensenville, IL
Model:
UK 80-AES

Specifications

Condition:
used
Stock number:
45977001
Hp:
29.5
Gallons:
21.2
Material:
316SS
Blade type:
SIGMA
Subcategory:
Mixers

Description

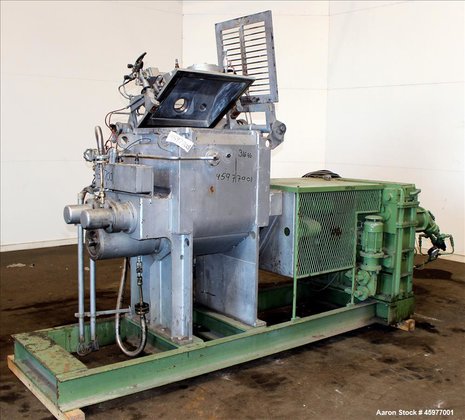

45977001 Used- Werner & Pfleiderer Mixer Extruder, Type UK80-AES, 316 Stainless Steel on product contact parts. Working capacity 21.2 gallon (80 liter), total capacity 31.7 gallon (120 liter). Double jacketed bowl 20-3/4" front to back x 20-1/4" left to right, approximate 27" deep. Domed top cover with (2) 4" sight glasses, (2) 2", (2) 3/4", suitable for vacuum. Has a grid lid. 316 Stainless steel sigma style blades, approximate 5-1/4" diameter x 44" long 316 stainless steel screw discharge. Blade speed 10.5 to 105 rpm and discharge screw speed 8.5 to 85 rpm. Hydraulic driven by (3) Hydrokraft model PVG130-E hydraulic units driven by 22kW, 50 Hertz motor. Includes (2) control panels, (1) top cover with press piston and ram, (1) extra screw, and misc. parts. Mounted on carbon steel frame. Built 1988.
