Location:
Bensenville, IL
Manufacturer:
Sigma extruders
Model:
VIU

Specifications

Condition:
used
Stock number:
62246
Hp:
50
Gallons:
120
Material:
Carbon Steel
Blade type:
Sigma
Subcategory:
Mixers

Description

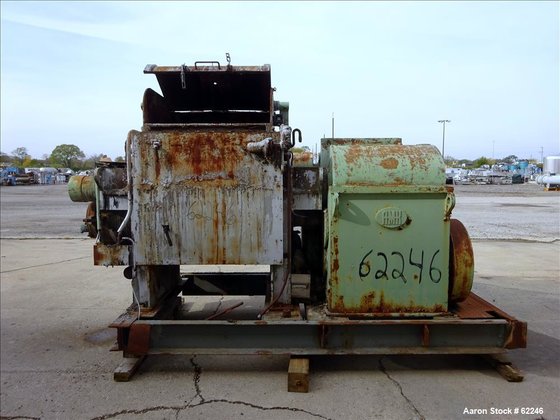

62246 Used- AMK Mixer Extruder, Type VIU. Carbon steel construction. Working capacity 120 gallon (450 liter). Bowl dimensions are: 39" long x 35" wide x approximately 35" deep (1000 mm long x 900 mm wide x 900 mm deep). Double jacketed rated to 45 psi (3 bar). Not rated for vacuum. Driven by a 37.5/51 hp, 25/34 kw gearbox turning the sigma style blades with a variable speed from 21 to 42 rpm. (1) 9" diameter x approximately 54.6" long (230 mm diameter x approximate 1400 mm long) discharge screw driven by a 27.75 hp/18.5 kw motor. Screw speed is 26 rpm. Mounted on an I-beam frame. Overall dimensions: 13' long x 7'2" wide x 6'5" high (4000 mm long x 2200 mm wide x 2000 mm high).
