Location:
Bensenville, IL
Manufacturer:
Sigma extruders
Model:
UK20X-AU-4V

Specifications

Condition:
used
Stock number:
64593
Hp:
57
Gallons:
530
Material:
Stainless Steel
Blade type:
Sigma
Subcategory:
Mixers

Description

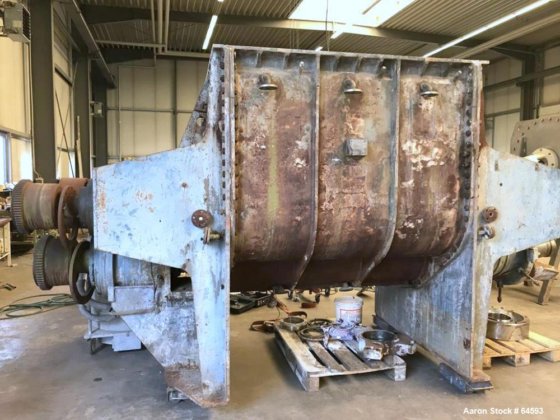

64593 Used- Werner & Pfleiderer Mixer/Extruder, Type UK20X-AU-4V. 316 Stainless steel construction. Total capacity 793 gallon (3000 liter); working capacity 530 gallon (2000 liter). Bowl 56.6" x 65.5" x 54.6" deep (1450 mm x 1680 mm x 1400 mm deep). Sigma style blades, 7.8" (200 mm) diameter. Double jacketed, rated for 180 psi (12 bar) and vacuum. 11.7" (300 mm) discharge screw. Driven by a Flender #177-110-115-7A gearbox, 57 hp/38 kw. Sonder 1/728. N1 465-265 rpm. N2 15/112-5 rpm. Overall dimensions (mixer only) are: 15'5" long x 6'2" wide x 8'9" high (4750 mm long x 1900 mm wide x 2750 mm high).
