Location:
Bensenville, IL
Manufacturer:
Sigma extruders
Model:
MXE 2500

Specifications

Condition:
used
Stock number:
45500001
Hp:
75
Gallons:
660
Material:
316SS
Blade type:
Sigma
Subcategory:
Mixers

Description

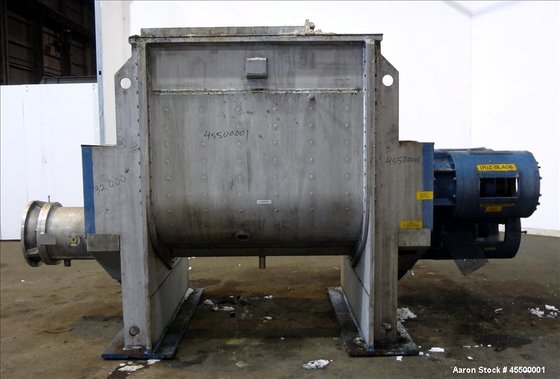

45500001 Used- F. Aoustin Mixer Extruder, Model MXE 2500, 2500 Liter (660 Gallon) Working Capacity, 3800 Liter (1000 Gallon) Total, 316 Stainless Steel Product Contact Areas. Stainless steel jacketed bowl approximate 62.5" (1590mm) front to back x 62.99" (1600mm) left to right x approximately 57" (1447mm) deep, rated 50 psi at 32 to 300 degrees F. Removable 24" section of top bowl liner. Tangential sigma blades. Front blade driven by a 75 hp, 3/60/230/460 volt, 1775 rpm motor thru a planetary reducer, ratio 43.95 to 1, blade speed 25 to 50 rpm. Rear blade requires a 75 hp motor, includes a planetary reducer, ratio 43.95 to 1, blade speed 25 to 50 rpm. Approximate 12" (304mm) diameter x 104" (2641mm) long discharge screw with cutter, die plates, and jacketed barrel, rated 50 psi at 32 to 300 degrees F. Screw driven by a 100 hp, 3/60/460 volt, 1780 rpm motor thru a planetary reducer, ratio 25.53 to 1, blade speed 20 to 80 rpm. No top cover. Includes spare barrel sleeves, die plates,...
