Location:
Bensenville, IL
Manufacturer:
Sigma extruders
Model:
63ZL/EMX

Specifications

Condition:
used
Stock number:
45500003
Hp:
75
Gallons:
660
Material:
304SS
Blade type:
Sigma
Subcategory:
Mixers

Description

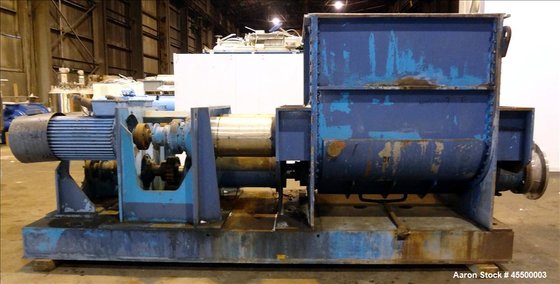

45500003 Used- Winkworth Machinery Mixer Extruder, Model 63ZL/EMX, Approximate 2500 Liter (660 Gallon) Working Capacity, 3800 Liter (1000 Gallon) Total, 304 Stainless Steel Product Contact Areas. Carbon steel jacketed bowl approximate 61-3/4" front to back x 62-1/4" left to right x approximately 54" deep, rated 3.5 bar at 150 degrees C. Removable 36" section of top bowl liner. Tangential sigma blades. Front and rear blades each driven by a 55kw, 3/50/415 volt, 1475 rpm motor thru a planetary reducer. Approximate 16" diameter x 90" long discharge screw with jacketed barrel, rated 3.5 bar at 150 degrees C. Screw requires an approximate 75kw motor, includes a planetary reducer. No top cover. Serial# 16010, built 1996. Last used on Sodium Poly Acrylate.
