- Dynamic Air Forberg Twin Shaft Fluidizer Dryer, 4.2 Cubic Feet, Model F-120XE, Carbon Steel in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Forberg/Kreyenburg
Model:
F120-XE

Specifications

Condition:
used
Stock number:
45275001
Material:
CS

Description

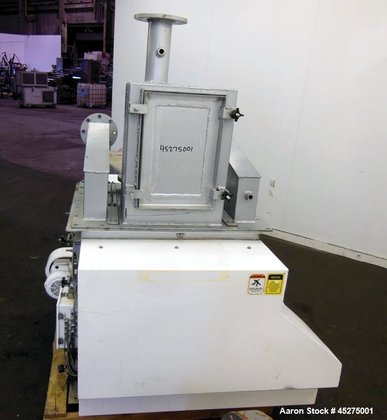

45275001 Used- Dynamic Air Forberg Twin Shaft Fluidizer Dryer, 4.2 Cubic Feet, Model F-120XE, Carbon Steel. Non-jacketed chamber approximately 33" wide x 28" long x approximately 23" deep. (2) 2-1/2" diameter shafts with 28 paddles approximately 5-1/2" wide x 3/16" thick, welded to 1" diameter posts. Top mounted carbon steel flow distortion bar with (2) pin mill bars, approximately 1-1/2" diameter shafts with 3/8" diameter pins, each bar driven by a 2 hp, 3/60/230/460 volt, 1755 rpm motor. (2) Side entering chopper blades, each driven by (2) air operated bombay outlet doors. Bolt-on top cover with access door. Mixer driven by a 5 hp, 3/60/230/460 volt, 1680 rpm gear motor, ratio 16.47 to 1. Includes a control panel with a MicroMX-612 controller, (1) Cincinnati HP high pressure blower, driven by a 7.5 hp motor, and an Accutherm heater.
