Location:
Bensenville, IL
Model:
TE.3-10

Specifications

Condition:
used
Stock number:
40037544
Hp:
.75
Gallons:
2.6
Material:
Charles Ross
Subcategory:
Mixers
Subcategory 2:
Planetary mixers

Description

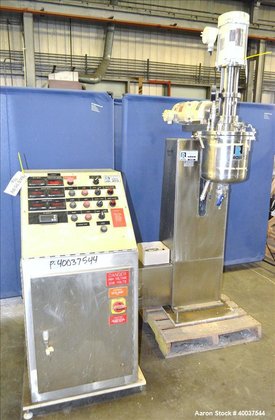

40037544 Used- Ross Turbo Emulsifier, Model TE.3-10, 316 Stainless Steel. 3-10 Liter mixing capacity. Approximately 10'' diameter x 10'' deep mixing can, 1" center bottom outlet. Internal rated 21.8 psig at 260 degrees F., jacket rated 72.5 psi at 260 degrees F, motorized bowl raise/lower. Anchor style agitator with scrapers, and inner blades driven by a 3/4 hp, 3/60/208-230/460 volt, 1725 rpm gear motor, ratio 11.2 to 1, emulsifier driven by a 1.5 hp, 3/60/208-230/460 volt, 1725 rpm motor. Includes a control panel with (2) Reliance VS drives, and a Kinney vacuum pump, model KC-2, driven by a 1/4hp motor. Built 1994.
