Location:
Bensenville, IL
Manufacturer:
Morton
Model:
FM130-D

Specifications

Condition:
used
Serial number:
M23944
Stock number:
63989
Cubft:
3
Material:
304 Stainless Steel
Subcategory:
Mixers
Subcategory 2:
Plow mixers

Description

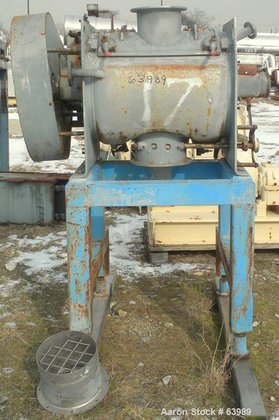

63989 Used- Morton Machine Company Plow Mixer, Model FM 130-D, 304 Stainless Steel. Approximate 3 cubic feet working, (4.6 total). Carbon steel jacketed chamber 20" diameter x 26" long, rated 5 Bar (72.5 PSI) at 158 deg.c (316 f). 4" diameter shaft with 2 bolt-on plows, and 2 bolt-on end scrapers.Driven by an approximate 5.5 KW (7.4 HP) motor thru reducer. (1) high speed chopper driven by a 4 KW (5.4 HP), 3/50/415 Volt, 2890 RPM motor. Openings: top 20" x 12" access door with an 8" diameter feed opening. 6" x 5" bottom outlet with manually operated hand valve. Mounted on a 33" tall carbon steel frame. Approximate 39" discharge height.
