-Lodige Ploughshare Batch Powder Mixer, type FM130D1MZ. Material of construction is stainless steel on product contact parts in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Lodige
Model:
FM130D1MZ

Specifications

Condition:
used
Stock number:
40374015
Cubft:
3.06
Material:
Stainless Steel
Category:
Mixers
Subcategory:
Plow mixers

Description

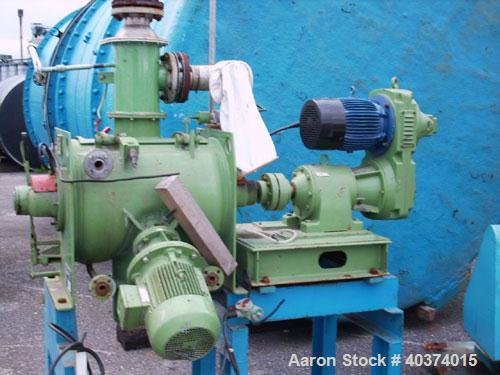

40374015 Used-Lodige Ploughshare Batch Powder Mixer, type FM130D1MZ. Material of construction is stainless steel on product contact parts. Total capacity is 4.59 cubic feet (130 liters), working capacity is 3.06 cubic feet (86.67 liters). External mild steel heating/cooling jacket rated for 75 psi (5 bar) at 302 deg F (150 deg C). (2) Plows and (2) end scrapers on common center shaft with water flush to seals. Shaft output speed 26-160 rpm. (1) Single side chopper with 4 x 4 blade refiner driven by a 4.6 kW/6.90 hp-2930 rpm-415 volt/3 ph/50 cycle Exe G1-G3 motor. (1) 20.28" x 12.09" (520 mm x 310 mm) top hinged access door with 10.53 (270 mm) diameter feed chute and two off locking clamps. (1) 6.24" x 4.68" (160 mm x 120 mm) bottom discharge "bomb door" with ratchet handle operation and 9.36" (240 mm) diameter discharge pipe. Variable speed main drive 5.5 kW/8.25 hp-1440 rpm, 415 volt/3 ph/50 cycle EExdIIB T4 motor and direct coupled SEW Eurodrive model R80 VU4/H5 manually variable...
