Location:
Bensenville, IL, USA
Model:
T-15

Specifications

Condition:
used
Stock number:
34809
Cubft:
14.2
Material:
304 Stainless Steel
Subcategory:
Mixers
Subcategory 2:
Plow mixers

Description

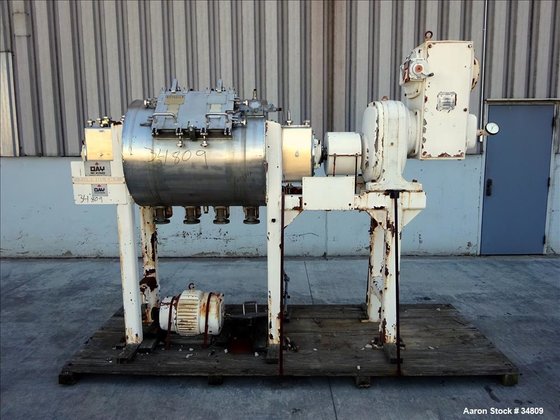

34809 Unused- J.H. Day T-15 Turbulent Mixer. 304 Stainless steel in product zone with 100 rms finish. 14.2 Cubic foot capacity (106 gallon), 30" diameter x 36" long mix chamber. Designed for 5 psi internal capacity. Bolted agitator assembly. 5 Spray nozzles for liquid injection. 12" x 18" Access door with door lock assembly. Stuffing boxes with sanitary inboard and outboard packing, enclosed in housing for pressure operation. (4) 1-1/2" Bottom outlets with air operated flush ball valves, 36" discharge height. 15hp Reeves XP varispeed drive, 230/460 volt, 1750 rpm, ratio 11.39 to 1, output 230-1800 rpm. Mounted on a carbon steel frame, serial# 89278.
