Location:
Bensenville, IL
Manufacturer:
No

Specifications

Condition:
used
Stock number:
40555001
Subcategory:
Cast film lines
Subcategory 2:
Plastics equipment

Description

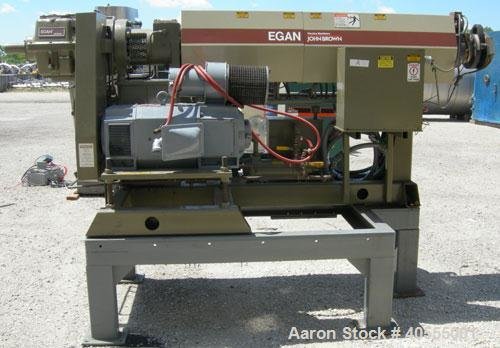

40555001 Used- Cast Film Line, 14" wide, consisting of: (1) Egan 2-1/2" single screw extruder, approximately 32 to 1 L/D ratio. 5 zone electrically heated, water cooled, non-vented barrel with closed loop system with tank, pump, and heat exchanger. Driven by a 60 hp, 500 volt, 1750/2100 rpm DC motor thru a gearbox, ratio 11.06 to 1. (1) Manual screen changer. (1) Control panel with West 2070 controllers, and a Reliance VS Maxpax III drive, extruder serial #901846-479939, built 1991. (1) A & A Associates quench tank, 304 stainless steel, 24" x 33" x 31" deep, (2) 4" diameter x 17" wide rubber pull rolls, driven by a 1 hp gearmotor. (1) A & A Associates cooling tank, 304 stainless steel, 24" wide x 96" long x 12" deep with (2) sets of pull rolls, (1) control panel with Digitrac panels. (1) Independent Machine Company take up/slitter/winder, model 12SR, serial #6581-1290. (4) Slitter blades manually adjustable, (1) static eliminator, rubber/metal pull rolls, tension bar, two station...
