Location:
Bensenville, IL
Manufacturer:
Corma
Model:
Par 88

Specifications

Condition:
used
Stock number:
45097001
Len (in):
Corrugator Line
Width (in):
3.9
Subcategory:
Plastics equipment

Description

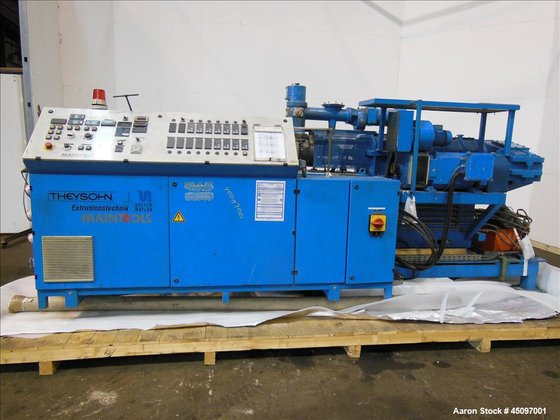

45097001 Used- Pipe Extrusion Line For Corrugated PVC Drainage Pipe Consisting Of: (1) Theysohn approximate 88mm counter rotating twin screw extruder, model Par 88. Approximate 24 to 1 L/D ratio. Electrically heated, liquid cooled 5 zone top venter barrel. Water cooled feed throat with dosing feeder, and hopper, approximate 53" center line height. Driven by a 42kw, 450 volt, 1750 rpm motor thru a Eisenbeiss gear box, ratio 43.8 to 1. Includes an operator control panel with temperature controllers, (1) Corma corrugator, type 420 HS. (2) Trains of traveling mold blocks with a Corma cooling system. (1) Fränkische puncher for drainage pipes, type HLV 50/160 including (4) alteration set for puncher (50mm, 65mm, 80mm, 100mm); (1) TM K.G. Viersen-Dülken winder for up to 4.9" (125 mm) diameter pipe, type HW 2300 0, including control panel. Available with line 50mm, 65 mm, 80 mm, and 100mm tooling for different diameters of piping.
