Location:
Bensenville, IL
Manufacturer:
Reifenhauser

Specifications

Condition:
used
Stock number:
45730002
Width (in):
43.3
Subcategory:
Plastics equipment
Subcategory 2:
Sheet extrusion lines

Description

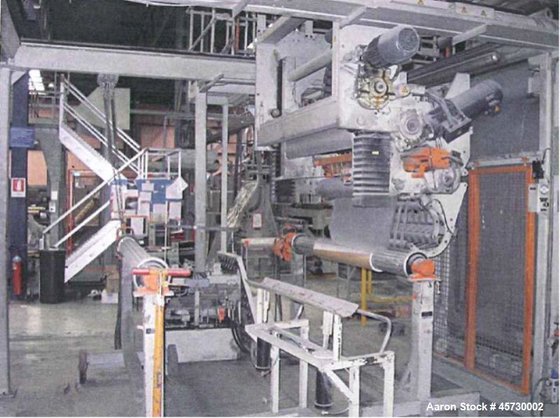

45730002 Used- Reifenhauser Multi-Layer Sheet Extrusion Line. Capacity 992 lbs/hour (450 kg/h) PP film. Comprised of: (1) Extruder 1.97” (50 mm) diameter, L/D 30. (1) Extruder 3.94“ (100 mm) diameter, L/D 30, 176 hp/132 kW motor. (1) Extruder 1.97“ (50 mm) diameter, L/D 30. (1) Dosing system. (1) Screen changer and melt pump. (1) Melt conveying pipe suitable for extrusion lines with horizontal roll stack calender configuration. (1) Flat die: Reikofil feedblock, selector plug suitable for 3 layers, foil net width 43.3” (1100 mm), automatic thickness control 63 segments. (1) Calender roll stack, horizontal configuration, 3 rolls. (1) AFS Corona Treatment. (1) In-line cutting system. (1) Trimmed edges winder, rewinder non-stop change, N system. (1) Electrical cabinet. Built 1991.
