- Zeno Single Roll Shredder, Type ZTLL 2000 x 1900 in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Zeno
Model:
ZTLL 2000X1900

Specifications

Condition:
used
Serial number:
99A4784
Stock number:
90261
Hp:
135
Subcategory:
Plastics equipment

Description

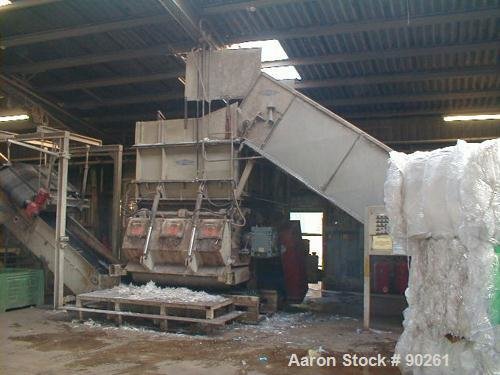

90261 Used- Zeno Single Roll Shredder, Type ZTLL 2000 x 1900. Material of construction is carbon steel. 27.7" diameter x 78" straight side (710 mm x 2000 mm) roll with hydraulic ram feed. 54 interchangeable knives. 5.46" diameter (140 mm) bottom screen. Max roll speed 120 rpm via an SEW 135 hp/90 kW, type MC2PLHT07 gearbox by an Elektron 165 hp/110 kW, 380/420/440/480 volt, 50 cycle, 3 ph belt driven motor. Includes operating hydraulics and hopper. Overall dimensions: 15'6" long x 12'3" wide x 9'1" high (4800 mm x 3700 mm x 2500 mm).
