Location:
Bensenville, IL
Manufacturer:
Four Corp

Specifications

Condition:
used
Stock number:
45576001
In psi:
65
Gallons:
2056
Jacket psi:
320
Horizontal or vertical:
Vertical

Description

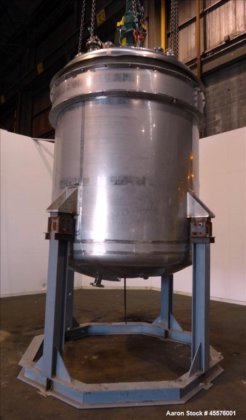

45576001 Used- Four Corporation Reactor, 1686 Gallon, SB-162 Nickel, Vertical. 76-1/2" Diameter x 72" straight side, 2:1 elliptical top & bottom. Internal rated 65/-15 psi at -20 to 350 degrees F. Approximate 60-7/8" diameter x 62" tall internal 1" diameter nickel 200 internal pipe coil, rated 320 psi, (2) 1-1/2" inlet & outlet. Off center top mounted Lightnin agitator, Model 14SP1, Serial #R0150488201, ratio 14.06 to 1, with a mechanical seal. 1-1/2" diameter with a 3 blade turbine, driven by a 1 hp, 3/230/460 volt, 1160 rpm motor. (4) Sidewall baffles. Openings top (2) 1-1/2", (3) 2-1/2", (3) 3", (2) 4", (1) sight glass, 8" drive. Bottom 12" center, 3" off center. Tank insulated with mineral wool and wrapped with 316L stainless steel sheathing. Supported with a carbon steel base and stand. Built 2002, Serial #1880, National Board #1767.
