Location:
Bensenville, IL
Manufacturer:
Pfaudler reactors

Specifications

Condition:
used
Serial number:
E1770577
Stock number:
40037066
In psi:
150
Gallons:
20
Jacket psi:
120

Description

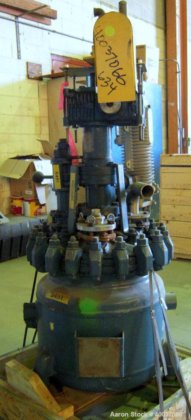

40037066 Used- Pfaudler Glass Lined Clamp Top Reactor, 20 gallon, 3315 glass, vertical. Approximately 16'' diameter x 16'' straight side, clamp dished top, dished bottom. Internal rated 150/fv psi at 650 deg F, jacket rated 120 psi at 350 deg F. SV428200AK air operated drive, 10 to 1 ratio. Provision for legs. Built 1977.
