Location:
Bensenville, IL
Manufacturer:
Pfaudler reactors

Specifications

Condition:
used
Serial number:
R1860505
Stock number:
44847025
In psi:
25
Gallons:
100
Jacket psi:
75

Description

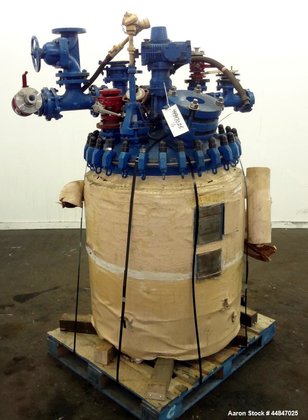

44847025 Used- Pfaudler Clamp Top Glass Lined Reactor, 100 Gallon, 5015 Blue Glass, Vertical. Approximately 30" diameter x 36" straight side, dished clamp top, dish bottom. Internal rated 25/full vacuum psi at 450 degrees F, carbon steel jacket rated 75 psi at 350 degrees F, 60 psi with internal vacuum. (1) H" baffle, 3 blade retreat curve agitator driven by a Pfaudler drive, size 2.5, model DWV50210AKC, serial #2.500-86069260-002, ratio 10 to 1, set up for hydraulic drive, no power pack. Openings: top (4) 2", (2) 3", 6" hand hole with sight glass cove; 2" venter bottom outlet. Provision for 3 legs. National Board #44093, serial #R186-0505, built 1986, repaired 1990.
