Location:
Bensenville, IL
Manufacturer:
Pfaudler reactors

Specifications

Condition:
used
Serial number:
J002279
Stock number:
44847028
In psi:
100
Gallons:
200
Jacket psi:
90

Description

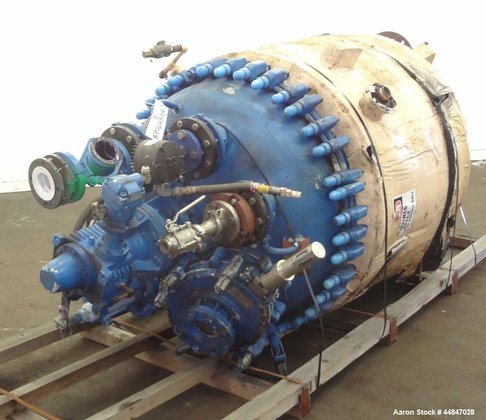

44847028 Used- Pfaudler Clamp Top Glass Lined Reactor, 200 Gallons, 9115 Blue Glass, Vertical. Approximately 40" diameter x 36" straight side, dished clamp top, dish bottom. Internal rated 100/full vacuum psi at -20 to 450 degrees F, carbon steel jacket rated 90 psi at -20 to 350 degrees F, 75 psi with internal vacuum. (1) H" baffle, 3 blade retreat curve agitator driven by a Pfaudler drive, size 3, model DWV5031CAKC, serial #95222211-002, ratio 15 to 1, set up for hydraulic drive, no power pack. Openings; top (4) 4", 6", 12" X 16" oval manway with assist cover; 3" center bottom outlet. Provision for 4 legs. National Board #47976, serial #J002279, built 1995.
