Location:
Bensenville, IL
Manufacturer:
Pfaudler reactors
Model:
RA60

Specifications

Condition:
used
Serial number:
J045719
Stock number:
40037025
In psi:
100
Gallons:
750
Jacket psi:
90

Description

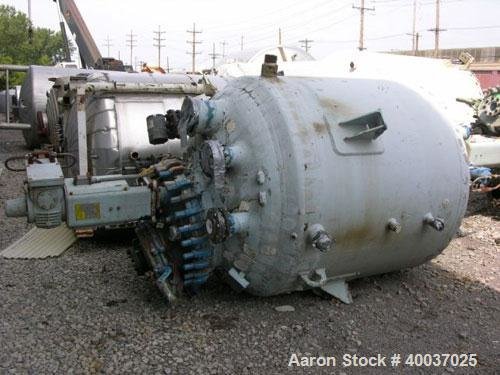

40037025 Used- Pfaudler Glass Lined Reactor, 750 gallon, 9115 white glass, RA series, vertical. Approximately 60'' diameter x 55'' straight side, dished top and bottom. Internal rated 100/fv psi at 450 deg F, jacket rated 90 psi at 450 deg F. 3525 SRW drive, 18 to 1 ratio, 97 rpm output, set up for hydraulic drive, no power pack. 3 bade retreat curve agitator, beavertail baffle. Side lug mounts. Built 2001.
