Location:
Bensenville, IL
Manufacturer:
Dedietrich reactors

Specifications

Condition:
used
Stock number:
86615
In psi:
100
Gallons:
2000
Jacket psi:
450

Description

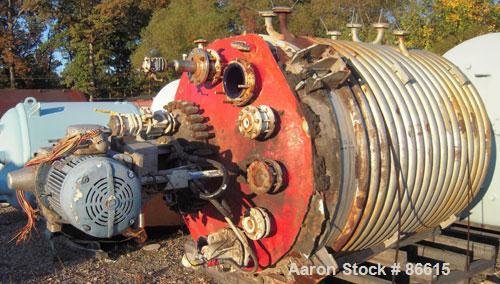

86615 Used- De Dietrich Closed Top Glass Lined Reactor, 2000 Gallon, 3009 Blue Glass. Approximately 76 diameter x 84 straight side, dished top and bottom. Internal rated 100/FV PSI at 500 Degrees F and 20 Degrees F at 100/FV PSI. Carbon steel pipe coil jacket rated 450 PSI at 500 Degrees F and 20 Degrees F at 450 PSI. Fin style baffle, 3 blade retreat curve agitator. Pfaudler 5RW agitator drive, ratio 15 to 1. Driven by a 15/10/7.5/5 HP, 3/60/460 Volt, 1765/1160/880/570 RPM XP motor. Center bottom outlet. Mounts on side lug mounts.
