Location:
Bensenville, IL
Manufacturer:
Pfaudler reactors
Model:
RA78-2000

Specifications

Condition:
used
Serial number:
R1890071
Stock number:
87841
In psi:
100
Gallons:
2000
Jacket psi:
90

Description

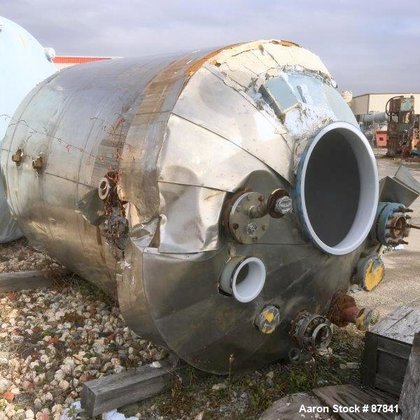

87841 Used- Pfaudler Glass Lined Reactor, 2000 gallon, model RA78-2000. 5025 white glass with calibration lines. Approximately 78" diameter x 90" straight side, dished top and bottom. Internal rated 100/FV at 450 deg F and -20 deg F at 100 psi, carbon steel jacket rated 90 psi at 450 deg F and -20 deg F at 90 psi. Pfaudler 5RW drive, driven by a 20 hp, 3/60/230/460 volt, 1720 rpm XP motor, no agitator. "H" baffle, great cover with a 14" x 18" manway. Approximate 3" off center bottom outlet. Mounted on 4 legs.
