Location:
Bensenville, IL
Manufacturer:
DCI

Specifications

Condition:
used
Serial number:
98PH59349
Stock number:
44570003
Gallons:
7.9
Jacket psi:
115
Interior psi:
60

Description

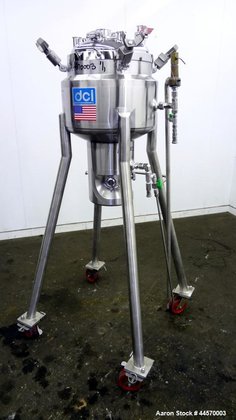

44570003 Used- DCI Reactor, 30 Liter (7.9 Gallon), 316L Stainless Steel, Vertical. 16” Diameter x 10” straight side, dished clamp-on top, dished bottom with a 6-5/8” diameter x 15” deep sump outlet. 240 Grit electro-polished internal rated 60/-15 psi at -20 to 400 degrees F. Dimple jacket rated 115/-15 psi at -20 to 400 degrees F. Insulated with 2” chloride free ceramic fiber, and 304 stainless steel sheathing. Openings: top (5) 1-1/2” tri-clamp, (3) 2-1/2” tri-clamp, 4” tri-clamp; 1-1/2” tri-clamp center bottom outlet. Mounted on (4) stainless steel legs with casters.
