Location:
Bensenville, IL
Manufacturer:
Kodak reactors

Specifications

Condition:
used
Serial number:
PV7700
Stock number:
41148005
Gallons:
30
Jacket psi:
0
Interior psi:
10

Description

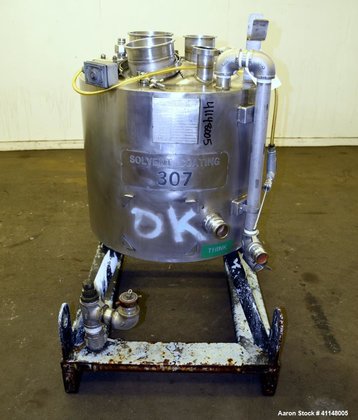

41148005 Used- Eastman Kodak Reactor, 30 Gallon, 316L Stainless Steel, Vertical. Approximate 22" diameter x 18" straight side. Dish top and bottom. Internal rated 10 psi at 200 degrees F, 304 stainless steel jacket rated atmospheric at 200 degrees F. Openings top (2) 6-1/2" tri-clamp, 3-1/2" tri-clamp, 4-1/2" tri-clamp, 2-1/4" tri-clamp, 1-1/2" NPT. 2-1/4" Center bottom outlet. Mounted on 4 carbon steel legs on a carbon steel frame. Serial# PV-7700, built 1974.
