Location:
Bensenville, IL
Manufacturer:
Precision Stainless

Specifications

Condition:
used
Stock number:
44335003
Gallons:
53
Jacket psi:
100
Interior psi:
50

Description

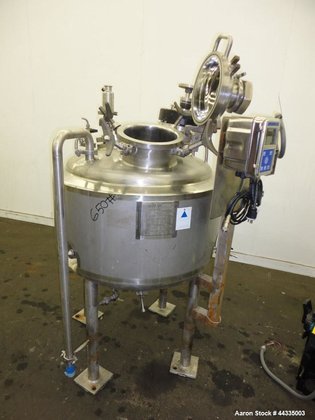

44335003 Used- Precision Stainless Reactor, 53 Gallon, 316L Stainless Steel, Vertical. 30" Diameter x 14" straight side, dished top and bottom. Internal rated 50 psi at -20 to 400 degrees F, vacuum design 15 psi, 304L stainless steel dimple jacket rated 100 psi at -20 to 400 degrees F. Off center Lightnin agitator, model V5S18, serial# 93/B29467. Mechanical seal, 1-1/4" diameter shaft with a 3 blade turbine, driven by a 0.33 hp, 90 volt, DC motor. Openings top Openings top (4) 1-1/2" tri-clamp, (2) 2" tri-clamp, 5" drive, 4" sight glass, 10" hand hole with a 3" sight glass in the cover. 1" Center bottom outlet. Mounted on 4 stainless steel legs. Serial#6091-4, National Board#4471, Built 1993.
