Location:
Bensenville, IL
Manufacturer:
DCI reactors

Specifications

Condition:
used
Serial number:
93PH46710
Stock number:
44570002
Gallons:
66
Jacket psi:
120
Interior psi:
45

Description

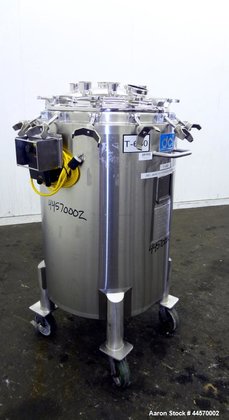

44570002 Used- DCI Reactor, 250 Liter (66 Gallon), 316L Stainless Steel, Vertical. 24” Diameter x 31” straight side, dished clamp-on top, dished bottom. 240 Grit electro-polished internal rated 45/-15 psi at -20 to 300 degrees F. Dimple jacket rated 120/-15 psi at -20 to 350 degrees F. Insulated with 2” chloride free ceramic fiber, and 304 stainless steel sheathing. (4) Sidewall baffles. (1) Off center bottom entering Apco A-300 magnetic mixer with a 3 blade prop, and a Dart 250 series DC speed controller, no motor. Openings: top (4) 1-1/2” tri-clamp, (3) 2” tri-clamp, (2) 4” tri-clamp; 1-1/2” tri-clamp center bottom outlet. Mounted on (4) stainless steel legs with casters.
