Location:
Bensenville, IL
Manufacturer:
A-L

Specifications

Condition:
used
Stock number:
40173001
Gallons:
80

Description

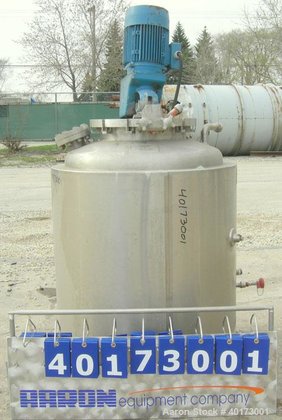

40173001 Used-A-L Stainless Inc Fermentor, 80 gallon, 300 liter, 316 stainless steel. 30" diameter x 28" straight side. Dish top, flat bottom. Coil and jacket rated 3.16 KG/CM^2 (45 psi) @ 130 degrees C (266 degree F). Clamp on Philadelphia mixer, model PG-3, 350 rpm output. 1 1/4" diameter shaft with (2) 3 blade props, driven by a 3 hp, 3/60/230/460 volt, 1740 rpm motor. Openings: top (2) 3" sight glass, 16" manway with no cover, 2"; approximate 1 1/2" center bottom outlet. Mounted on 4 stainless steel legs. Approximate 2" discharge height.
