Location:
Bensenville, IL
Manufacturer:
Precision
Model:
52151D

Specifications

Condition:
used
Stock number:
87017
Gallons:
132
Jacket psi:
75
Interior psi:
100

Description

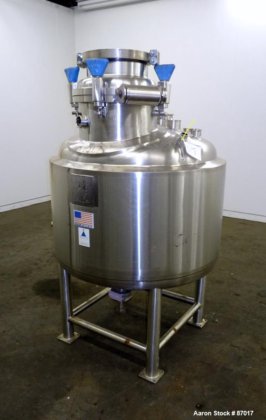

87017 Used- Precision Stainless Reactor, 500 Liter (132 Gallon), 316L Stainless Steel, Vertical. 36" Diameter x 26" straight side. Dished top and bottom. Internal rated 100 psi at -20 to 300 deg F, 304L stainless steel dimple jacket rated 75 psi at -20 to 300 deg F. Off center, top entering, Ross mixer emulsifier model ME510, 10 hp motor. Openings: top (7) 2" tri-clamp, 6-1/2" tri-clamp, (2) 2-1/2" tri-clamp, (3) 3-1/2" tri-clamp, 16" man way with cover; 1-1/2" x 1" center bottom outlet. Mounted on 4 stainless steel legs. Approximate 26" discharge height. National Board# 7926, serial# 982139-1, built 1999.
