Location:
Bensenville, IL
Manufacturer:
Lightnin reactors

Specifications

Condition:
used
Serial number:
R0032770561
Stock number:
46075131
Bottom:
Dished Bottom
Gallons:
150
Diameter:
34"
Jacket psi:
100
Year built:
2000
Agitator hp:
.43
Outlet size:
2"
Interior psi:
80
Agitator type:
Top Entering
Straight side:
35"
Agitator cycle:
60
Agitator model:
EKXJC-43
Agitator phase:
3
Top head style:
Dished Head
Outlet location:
Bottom
Agitator location:
Top Offset
Internal pressure:
80 PSI
Overal dimensions:
76"L x 45"W x 95"T
Pressure - jacket:
100 psi
National board no.:
85
Internal temperature:
-20 to 300 degrees F
Temperature - jacket:
-20 to 300 degrees F
Agitator manufacturer:
Lightnin
Horizontal or vertical:
Vertical
Material of construction:
316L Stainless Steel

Description

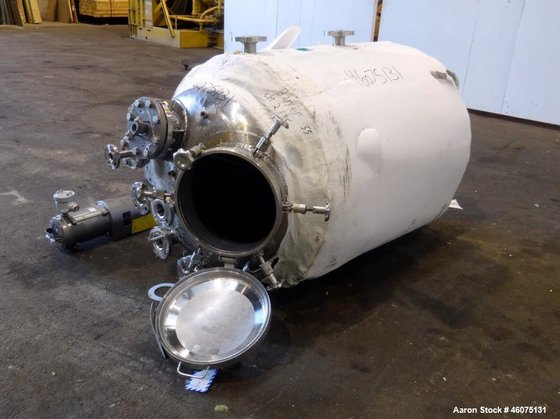

46075131 Used- Watson Metal Masters Reactor, 150 Gallon, 316L Stainless Steel, Vertical. 34" Diameter x 35" straight side, dished top & bottom. Internal rated 80 psi at -20 to 300 degrees F, jacket rated 100 psi at -20 to 300 degrees F. Off center top entering Lightnin agitator, model EKXJC-43, serial# R0032770561. Shaft with turbine, driven by a 0.43hp XP motor. Openings top: 16" man way with hinged cover, (1) 5", (5) 2". 2" Center bottom outlet. Mounted on (4) stainless steel legs. National Board# 85, serial# 2216-9, Built Year 2000.
