Location:
Bensenville, IL
Manufacturer:
DCI reactors

Specifications

Condition:
used
Serial number:
93PH47600C
Stock number:
42945004
Gallons:
198
Jacket psi:
150
Interior psi:
45

Description

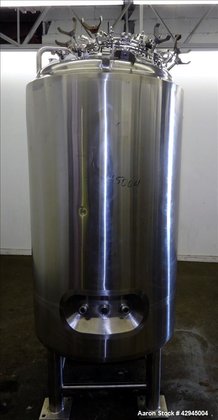

42945004 Used- DCI Reactor, 750 Liter (198 Gallon), 316L Stainless Steel, Vertical. 33" Diameter x 52" straight side, dished top and bottom. 240 Grit polished internal rated +45/-15 psi at -20 to 300 degrees F. 316L Stainless steel dimple jacket rated +150/-15 psi at -20 to 365 degrees F. Insulated with 2" chloride free ceramic fiber, and 304 stainless steel sheathing. Openings top (5) 1-1/2 tri-clamp, 4" tri-clamp, 18" man way with a 4" sight glass, and a 1-1/2" tri-clamp in the cover. 1-1/2" Tri-clamp center bottom outlet. Mounted on 4 stainless steel legs.
