Location:
Bensenville, IL
Manufacturer:
Caterpillar reactors
Model:
Surmet BS5500

Specifications

Condition:
used
Stock number:
40374021
Gallons:
211
Jacket psi:
65.2
Interior psi:
7.2

Description

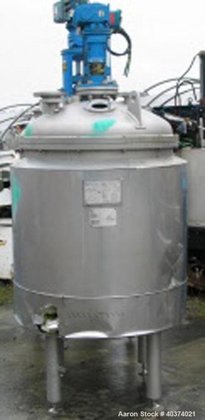

40374021 Used-Agemore Surmet BS5500 Cat 2 Stainless Steel 316L Reactor. 36.2" (920 mm) vessel diameter, 42.5" (1080 mm) depth on straight side, bolted top dish with 10.2" (260 mm) depth, welded bottom 10.2" (260 mm) deep. Mounted on (4) 3.15" (80 mm) diameter and 23.6" (600 mm) high stainless steel legs. Equipped with a Transkem agitator with 4 blade angled paddle turbine. Mechanical seal. 1.33 hp/1 kW inverter rated EExd IIB T3 284, 1420 rpm motor with a 7.333:1 Radicon reduction gearbox, 415/3/50. Shaft speed 19194 rpm. Pressure 7.2 psi (+0.5 barg) to full vacuum, test pressure 37 psi (2.55 barg). Temperature 14 deg F - 392 deg F (-10 deg C - +200 deg C), jacket pressure 65.2 psi (4.5 barg), test pressure 95.2 psi (6.5 barg).
