Location:
Bensenville, IL

Specifications

Condition:
used
Serial number:
8-525651
Stock number:
45706012
Bottom:
Eliptical Bottom
Gallons:
275
Diameter:
42"
Jacket psi:
45
Year built:
1999
Agitator hp:
1/2
Outlet size:
1"
Agitator rpm:
1725
Interior psi:
15
Agitator type:
Top Entering
Straight side:
40"
Agitator cycle:
60
Agitator model:
2BTNS-5
Agitator phase:
3
Top head style:
Eliptical
Outlet location:
Bottom
Agitator voltage:
208-230/460 Volt
Agitator location:
Top Center
Internal pressure:
FV 15 PSI
Overal dimensions:
65" x 65" x 112"T
Pressure - jacket:
45 PSI
National board no.:
10723
Internal temperature:
-20 to 115 Degrees F.
Temperature - jacket:
-20 to 115 degrees F
Agitator manufacturer:
Chemineer
Horizontal or vertical:
Vertical
Agitator shaft diameter:
1"
Material of construction:
316L Stainless Steel

Description

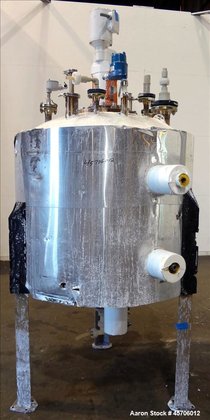

45706012 Used- R.A.S. Process Equipment Teflon Lined Reactor, 275 Gallon, 316L Stainless Steel, Vertical. Approximate 42" diameter x 40" straight side, 2:1 elliptical top and bottom. Internal 15/Full Vacuum psi at -20 to 115 degrees F, 316L stainless steel 1/2 pipe coil jacket rated 45 psi at -20 to 115 degrees F. Top entering Chemineer agitator, model 2BTNS-5, serial# 8-525651, output rpm 35. Approximate 1" diameter Teflon coated shaft and 3 blade prop. Driven by a 1/2hp, 3/60/230/460 volt, 1725 rpm motor. Openings top (4) 1", 1-1/2", 2", (4) 3", 12" drive. Approximate 1" Center bottom outlet. Mounted on (3) legs. National Board#10723, serial# 99161400, built 1999.
