Location:
Bensenville, IL
Manufacturer:
Lightnin reactors

Specifications

Condition:
used
Serial number:
R00327703-01
Stock number:
46075161
Bottom:
Dished Bottom
Gallons:
300
Mounted:
Mounted on 4 Legs
Opening:
Top: 16" man way with cover, (1) 8" for agitator, (2) 3", (5) 2"
Diameter:
42"
Jacket psi:
100
Mixer type:
3 Blade Turbine
Year built:
2000
Agitator hp:
3
Outlet size:
1-1/2"
Agitator rpm:
1725/1425
Interior psi:
80
Agitator type:
Top Entering
Straight side:
44"
Agitator cycle:
60
Agitator model:
EKXJC-300
Agitator phase:
3
Top head style:
Dished Head
Outlet location:
Bottom
Agitator location:
Top Offset
Internal pressure:
80
Overal dimensions:
64"L x 64"W x 86"T
Pressure - jacket:
100
National board no.:
87
Internal temperature:
-20 to 300 degrees F
Temperature - jacket:
-20 to 300 degrees F
Agitator manufacturer:
Lightnin
Agitator shaft length:
62"
Horizontal or vertical:
Vertical
Agitator shaft diameter:
1-1/2"
Agitator shaft material:
316 Stainless Steel
Material of construction:
316L Stainless Steel

Description

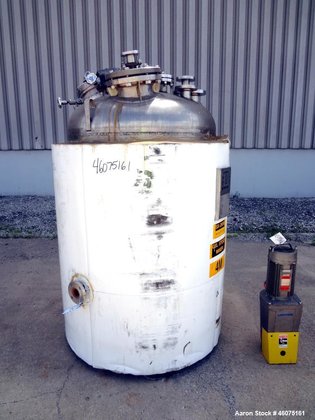

46075161 Used- Watson Metal Masters Reactor, 300 Gallon, 316L Stainless Steel, Vertical. 42" Diameter x 44" straight side, dished top & bottom. Internal rated 80 psi at -20 to 300 degrees F, 316L stainless steel jacket rated 100 psi at -20 to 300 degrees F. Off center top entering Lightnin agitator, model EKXJSS-300, serial# R00327703-01. Shaft 1-1/2" diameter x 62" long, 3 blade turbine, driven by a 3hp 3/60/ volt, 1725/1425 rpm motor. Openings top: 16" man way with cover, (1) 8" for agitator, (2) 3", (5) 2", 1-1/2" center bottom outlet. Mounted on (4) stainless steel legs. National Board# 87, serial# 2216-7, built 2000.
