Location:
Bensenville, IL
Manufacturer:
Peterson reactors

Specifications

Condition:
used
Stock number:
82440
Gallons:
350
Jacket psi:
100
Interior psi:
25

Description

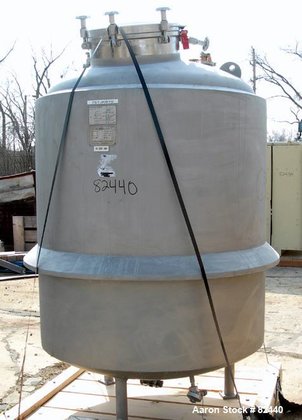

82440 USED: Peterson custom stainless reactor, 350 gallon, 316L stainless steel, vertical. 45" diameter x 48" straight side, dished top and bottom. Internal rated 25 psi at 375 deg F, dimple jacket rated 100 psi at 375 deg F. 1" diameter shaft with a 3 blade turbine, driven by a Lightnin agitator, model XJC30, .30 hp, 3/60/208-220/440 volt, 1725 rpm motor. Openings: top (4) 3" tri-clamp, 2" tri-clamp, 1-1/2" tri-clamp, 5" off center drive, 18" manway no cover; 2" center bottom outlet. Mounted on 3 stainless steel legs.
