Location:
Bensenville, IL
Manufacturer:
Precision Stainless

Specifications

Condition:
used
Stock number:
81746
Gallons:
381
Jacket psi:
38
Interior psi:
15

Description

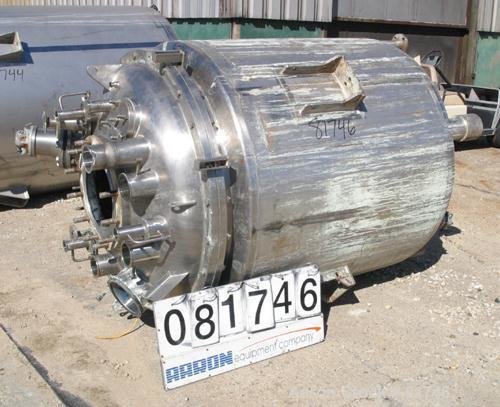

81746 Used- Precision Stainless Reactor, 381 Gallon, 316L Stainless Steel, Vertical. 45" Diameter x 51" straight side, dished bolt-on top, dished bottom. Internal rated 15 psi at -20 to 200 degrees F. 304L Stainless steel jacket rated 38 psi at -20 to 250 degrees F. Top entering Ekato agitator, model EM060, serial# 91-13299. 2-1/2" Diameter shaft with a 6 blade turbine, driven by a 5hp, 3/60/230/460 volt, 1680 rpm gear motor, ratio 3.96 to 1, approximate 424 rpm output. (3) Side wall baffles, (3) spray balls. Openings: top (3) 3-1/2" tri-clamp, (4) 4-3/4" tri-clamp, 7-1/2", 1", 3", 5", 13"; bottom 4-1/2"; 2-1/2" center. (4) Side lug mounts. Provision for 4 pipe legs. Serial#5339, National Board# 3567, built 1991.
