Location:
Bensenville, IL
Manufacturer:
DCI

Specifications

Condition:
used
Serial number:
93PH46968
Stock number:
41317015
Gallons:
414
Jacket psi:
150
Interior psi:
50

Description

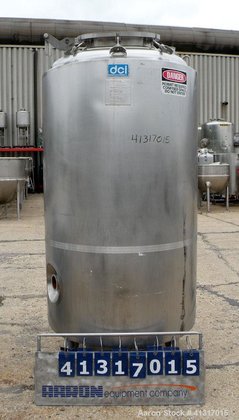

41317015 Used- DCI Reactor, 414 Gallon, 316L Stainless Steel, Vertical. 42" diameter x 65" straight side, dished top and bottom. 180 grit finished internal rated 50 psi at 100 deg F and -20 deg F at 50 psi, dimple jacket rated 150 psi at 100 deg F and –20 deg F at 150 psi. Insulated with 2" fiberglass and 316 stainless steel sheathing. 1 ½’’ diameter shaft with a 3 blade turbine, no drive. Openings: top 1 1/2" tri-clamp, 2" tri-clamp, (5) 3" tri-clamp, 4" tri-clamp, 8" tri-clamp, 18’’ manway no cover; 4" tri-clamp center bottom outlet, requires valve. Mounted on 4 stainless steel legs.
