Location:
Bensenville, IL
Manufacturer:
Watson

Specifications

Condition:
used
Stock number:
46075160
Bottom:
Dished Bottom
Gallons:
600
Mounted:
Mounted on 4 Legs
Opening:
16" Manway with hinged cover, (8) 2", (1) 6"
Diameter:
52.25"
Jacket psi:
100
Year built:
2000
Outlet size:
2"
Interior psi:
80
Straight side:
58"
Top head style:
Dished Head
Outlet location:
Bottom
Internal pressure:
80
Overal dimensions:
64"L x 64"W x 108"T
Pressure - jacket:
100
National board no.:
89
Internal temperature:
-20 to 300 degrees F
Temperature - jacket:
-20 to 300 degrees F
Horizontal or vertical:
Vertical
Material of construction:
316L Stainless Steel

Description

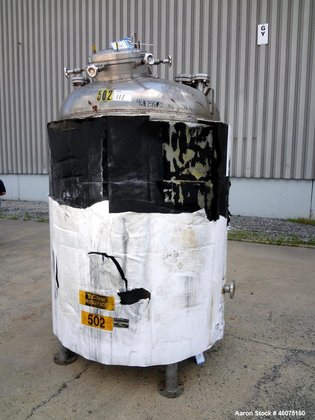

46075160 Used- Watson Metal Masters Reactor, 600 Gallon, 316L Stainless Steel, Vertical. 52.25" Diameter x 58" straight side, dished top & bottom. Internal rated 80 psi at -20 to 300 degrees F, 316L jacket rated 100 psi at -20 to 300 degrees F. Openings top 16" man way with hinged cover, (8) 2", (1) 6", 2" center bottom outlet. Mounted on (4) stainless steel legs. National Board# 89, serial# 2216-11, built 2000.
