Location:
Bensenville, IL
Manufacturer:
Lee tanks
Model:
850U9MS

Specifications

Condition:
used
Serial number:
B4378A2
Stock number:
42293008
Gallons:
850
Agitator:
Lee Ind
Material of construction:
316 Stainless Steel
Subcategory:
Kettles

Description

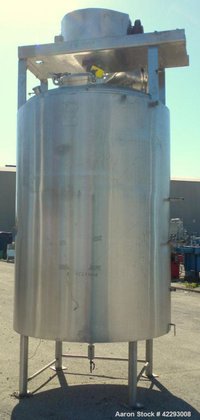

42293008 Used- Lee Industries Double Motion Vacuum Kettle, Model 850U9MS, 850 gallon, 316 stainless steel, vertical. 66" diameter x 89" straight side. Dished top and bottom. #4 Internal finish non-code rated for F.V./15 psi at 20 to 250 degree F. 304 Stainless steel Uniflow coil jacket rated 125 psi at 20 to 353 degree F. 1-1/2" Thick fiberglass insulation with 304 stainless steel sheathing, fixed stainless steel agitator bridge. Dual motion agitator, anchor style with scrapers, inner bar type agitator, driven by a 25 hp, 3/60/230/460 volt motor thru a Lee heavy duty DM-3 gearbox, output 25.75 rpm, maximum product viscosity 750,000 CPS. Top entering spray ball. Openings: top 1", (2) 1-1/2" tri-clamp, (2) 2" tri-clamp, (2) 3" sightglass, 3-1/2" drive, 18" manway with cover, 20" vapor elbow; 4" tri-clamp center bottom outlet. Mounted on 4 stainless steel legs, approximate 18" discharge height.
