Location:
Bensenville, IL
Manufacturer:
MAN tanks
Size:
2" center, 3" bottom

Specifications

Condition:
used
Stock number:
46075128
Bottom:
Dished Bottom
Gallons:
900
Opening:
Top: 20" man way with hinged cover, (1) 12", (1) 6", (1) 4" sight glass, (1) 4", (1) 3", (5) 2".
Diameter:
66"
Jacket psi:
70
Year built:
1983
Outlet size:
2" center, 3" bottom
Interior psi:
50
Straight side:
56"
Top head style:
Dished Head
Outlet location:
Bottom
Internal pressure:
50
Overal dimensions:
105"L x 76"W x 72"T
Pressure - jacket:
70
National board no.:
3175
Internal temperature:
100 Degrees F
Temperature - jacket:
100 Degrees F
Horizontal or vertical:
Vertical
Material of construction:
316 Stainless Steel
Subcategory:
Reactors

Description

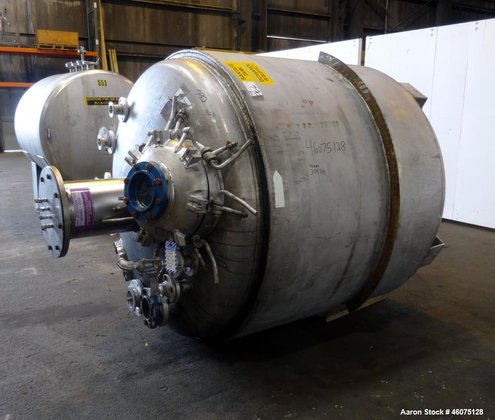

46075128 Used- Santa Fe Tank & Heating Reactor, 900 Gallon, 316 Stainless Steel, Vertical. Approximate 66" diameter x 56" straight side, dished top & bottom. Internal rated 50 psi at 100 degrees F, 304 stainless steel jacket rated 70 psi at 100 degrees F. Openings Top: 20" man way with hinged cover, (1) 12", (1) 6", (1) 4" sight glass, (1) 4", (1) 3", (5) 2". 2" Center bottom outlet, 3". Provision for (4) legs. National Board# 3175, serial# 20812, built 1983.
