Location:
Bensenville, IL
Manufacturer:
MAN tanks

Specifications

Condition:
used
Stock number:
45467003
Bottom:
Dished Bottom
Gallons:
10,000
Mounted:
Side Lug Mounted
Opening:
Top: 26" Man way, (9) 3", (3) 4"
Diameter:
96"
Presfulvac:
15
Year built:
1995
Straight side:
288"
Top head style:
Dished Head
Internal pressure:
15
National board no.:
1625
Internal temperature:
-20 to 180 F
Horizontal or vertical:
Horizontal
Material of construction:
Carbon Steel
Subcategory:
Carbon steel tanks

Description

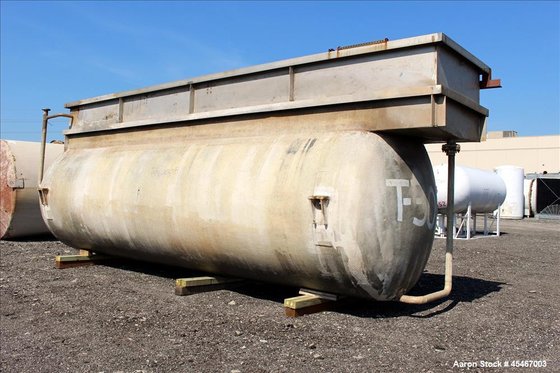

45467003 Used- Enerfab Double Wall Pressure Tank, 10,000 Gallons, Carbon Steel, Horizontal. Inner shell approximately 96" diameter x 288" straight side, dished heads. Internal rated 15 psi at -20 to 180 degrees F. Outer shell is carbon steel coated with fiberglass. Approximately 97-1/4" diameter x 299-1/2" straight side, dished heads, rated 7.9 psi at -20 to 180 degrees F. Pressure in secondary tank must not exceed pressure in the primary by more than 7.9 psi. Openings: top (9) 3", (3) 4", 26" manway with cover; heads (2) 3" leak detection. Top mounted containment collar with (1) 4" outlet. Side mounting lugs, top lifting lugs, no saddles. Tank was buried in pea gravel. Serial #9510591, National Board #1625, built 1995.
