Location:
Bensenville, IL
Manufacturer:
Tri-State
Size:
2"

Specifications

Condition:
used
Stock number:
43744002
Bottom:
Dished Bottom
Gallons:
7-1/2
Mounted:
Mounted on Casters
Opening:
(1) Side entering spray ball. 9-1/2” Diameter top opening, missing cover, side (3) 1-1/2” tri-clamp, (2) 3” tri-clamp
Diameter:
16"
Presfulvac:
30
Year built:
1996
Agitator hp:
3/4
Outlet size:
2"
Agitator rpm:
1710
Agitator type:
Side Entering
Opening cover:
Yes
Straight side:
7"
Agitator ratio:
12 to 1
Top head style:
Dished Head
Outlet location:
Bottom
Internal pressure:
30 psi
Overal dimensions:
46"L X 26"W X 48"T
National board no.:
169
Internal temperature:
-20 to 275 degrees F
Horizontal or vertical:
Vertical
Material of construction:
316 Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

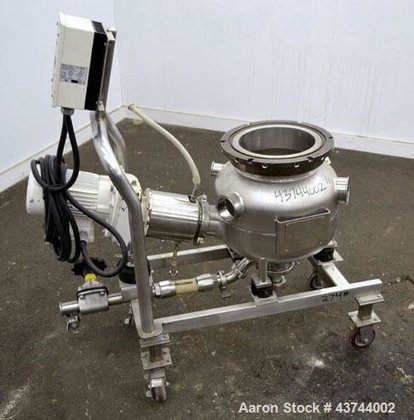

43744002 Used- Tri-State Precision Pressure Tank, 7-1/2 Gallon, 316 Stainless Steel, Vertical. Approximately 16" diameter x 7" straight side, dished top and bottom. Internal rated 30 psi at -20 to 275 degrees F. Side entering agitator with a 1" diameter shaft with a 3 blade prop, driven by a 3/4 hp, 3/60/230/460 volt, 1710 rpm gear motor, ratio 2.71 to 1, includes a Leeson speed controller. (1) Side entering spray ball. 9-1/2" Diameter top opening, missing cover, side (3) 1-1/2" tri-clamp, (2) 3" tri-clamp, 2" center bottom outlet. Mounted on a stainless steel frame with casters.
