Location:
Bensenville, IL
Manufacturer:
N/A
Size:
1"

Specifications

Condition:
used
Stock number:
43855008
Bottom:
Dished Bottom
Gallons:
45
Mounted:
Mounted on 4 Legs
Opening:
top (2) 1-1/2”, 3’, (2) 4”
Diameter:
21"
Mixer type:
3 Blade Prop
Presfulvac:
25
Year built:
1975
Agitator hp:
0.33
Outlet size:
1"
Agitator rpm:
1720
Agitator type:
Top Entering
Straight side:
28"
Top head style:
Flat Top
Outlet location:
Bottom
Agitator location:
Top Offset
Internal pressure:
25 psi
Overal dimensions:
36"L X 36"W X 72"T
Internal temperature:
250 deg F
Horizontal or vertical:
Vertical
Material of construction:
316 Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

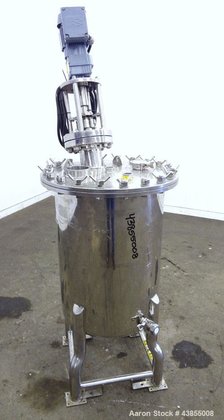

43855008 Used- Pressure Tank, 45 Gallons, 316 Stainless Steel, Vertical. Approximately 21" diameter x 28" straight side, flat bolt- on top, dished bottom. Internal rated 25 psi at 250 degrees F, dimple jacketed bottom head, no rating. Off-center top entering agitator with mechanical seal. 1" Diameter shaft with (2) 3 blade props, driven by a 0.33 hp, 3/60/230/460 volt, 1720 rpm gear motor, gear housing cracked. (2) Side wall baffles. Openings: top (2) 1-1/2", 3, (2) 4"; 1" center bottom outlet. Mounted on 4 stainless steel legs.
