Location:
Bensenville, IL
Manufacturer:
Graco tanks
Size:
3/4"

Specifications

Condition:
used
Serial number:
R0036268515
Stock number:
43586011
Bottom:
Dished Bottom
Gallons:
45
Mounted:
Mounted on 4 Legs
Opening:
Top
Diameter:
24"
Mixer type:
3 Blade Turbine
Agitator hp:
1/3
Outlet size:
3/4"
Agitator rpm:
1725
Agitator type:
Top Entering
Opening cover:
Yes
Straight side:
19.5"
Agitator model:
EV5L33
Outlet location:
Bottom
Agitator location:
Top Offset
Overal dimensions:
80"L X 36"W X 100"T
Agitator manufacturer:
Lightnin
Material of construction:
304 Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

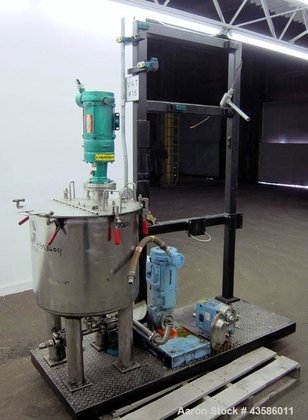

43586011 Used- Graco Mixing System consisting of: (1) Graco tank, 45 gallon, 304 stainless steel. 24" Diameter x 19.5" straight side, open top with a 1/3 hinged clamp down cover, dished bottom. Approximate 3/4" center bottom outlet. Mounted on 4 stainless steel legs. (1) Off center top entering Lightnin agitator, model EV5L33. 3/4" Diameter 316 stainless steel shaft with a 6" diameter 316 stainless steel 3 blade turbine, driven by a 1/3 hp, 3/60/230/460 volt, 1725 rpm XP motor. (1) Waukesha positive displacement pump, model 030U2AP, 316 stainless steel. 1-1/2" Tri-clamp inlet/outlet, (2) stainless steel rotors. Driven by a 1-1/2 hp, 3/60/230/460 volt, 1740 rpm XP gear motor, ratio 5 to 1. Includes a carbon steel mounting base.
