Location:
Bensenville, IL
Manufacturer:
Custom Fabricators
Size:
1 1/2"

Specifications

Condition:
used
Stock number:
41270014
Bottom:
Dished Bottom
Gallons:
50
Mounted:
Mounted on Casters
Opening:
top 1'' NPT, (2) 1 1/2'' tri-clamp, 2'' tri-clamp, 3'' tri-clamp
Diameter:
24"
Presfulvac:
30 psi
Year built:
2004
Outlet size:
1 1/2"
Straight side:
30"
Top head style:
Flat Top
Outlet location:
Bottom
Internal pressure:
30 psi
Overal dimensions:
28''L X 28''W X 56''T
National board no.:
314
Internal temperature:
-20 or 100 degrees F
Horizontal or vertical:
Vertical
Material of construction:
304 Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

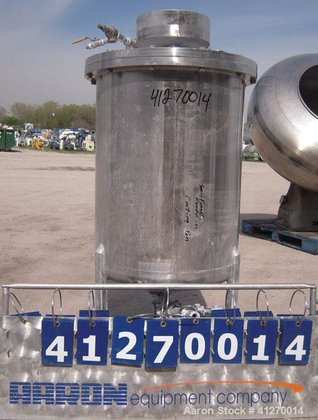

41270014 Used- Custom Fabricators Pressure Tank, 50 Gallon, 304 stainless steel, vertical. Approximately 24'' diameter x 30'' straight side, flat bolt on top, dished ernal rated 30 psi at 100 deg F and 20 deg F at 30 psi.Openings: top 1'' NPT, (2) 1 1/2'' tri-clamp, 2'' tri-clamp, 3'' tri-clamp; 1 1/2'' center bottom outlet. Mounted on 3 stainless steel legs with casters. Built 2004.
