Location:
Bensenville, IL
Manufacturer:
Rutten Engineering
Size:
3/4"

Specifications

Condition:
used
Stock number:
42714001
Bottom:
Dished Bottom
Gallons:
52.8
Opening:
top (1) 1-1/2’’ Tri-clmp, (1) 8’’ Tri-clamp with a cover and a dip tube
Diameter:
22.04’
Presfulvac:
58 psi
Year built:
2009
Outlet size:
3/4"
Opening cover:
Yes
Straight side:
22.20"
Top head style:
Dished Head
Internal pressure:
-14.50/+58 psi
Overal dimensions:
32''L X 32''W X 48''T
Internal temperature:
-85/+302 deg.f.
Horizontal or vertical:
Vertical
Material of construction:
316L Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

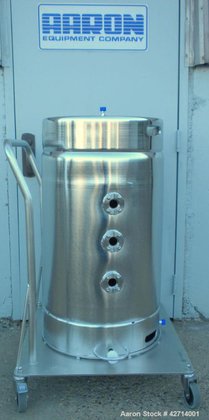

42714001 Unused- Rutten Engineering Sterile Storage Systems Pressure Tank, 200 Liter (52.8 Gallon), 316L Electro Polished Stainless Steel, Vertical. 560mm (22.04) Diameter x 564mm (22.20) straight side, dished top and bottom. Top and bottom skirts. Internal rated 1/+4 bar (-14.50/+58 psi) at 65/+150 dec.c. (-85/+302 deg.f.). Openings top (1) 1-1/2 Tri-clmp, (1) 8 Tri-clamp with a cover and a dip tube. (1) Rutten magnetic agitator with a double stir-bar, no drive. 3/4 Tangential center bottom outlet. Provision for (3) side sight glass, missing glass. Includes a 304 Stainless steel vessel transport trolley. Built 2009.
