Location:
Bensenville, IL
Manufacturer:
Letsch
Size:
4"

Specifications

Condition:
used
Serial number:
8627084701
Stock number:
42054016
Bottom:
Pitched Sloped Bottom
Gallons:
80
Mounted:
Mounted on 4 Legs
Opening:
top (4) 2'', (2) 3'', 8'' drive, 9'' hand hole with cover
Diameter:
25"
Mixer type:
Dual 4 Blade Turbine
Year built:
1986
Outlet size:
4"
Agitator type:
Top Entering
Opening cover:
Yes
Straight side:
36"
Agitator model:
72C5V
Top head style:
Dished Head
Outlet location:
Side bottom
Discharge height:
10"
Internal pressure:
1 psi
Overal dimensions:
44"L X 44"W X 94"T
Internal temperature:
180 degrees F
Agitator manufacturer:
Lightnin
Horizontal or vertical:
Vertical
Material of construction:
316L Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

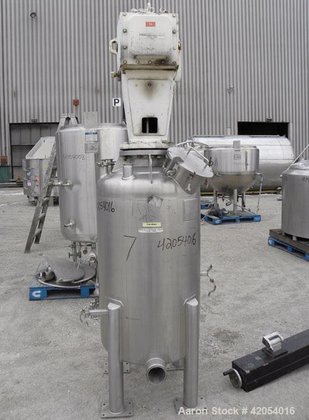

42054016 Used- Letsch/ Precision Stainless Tank, 80 gallon, 316L stainless steel, vertical. 25" diameter x 36" straight side, dish top, sloped bottom. Internal rated 1 psi at 180 deg F. Top entering Lightnin agitator, model 72C5V, ratio 6.43 to 1, output 272 rpm. 2" Diameter shaft with (2) 4 blade turbines, driven by a 5 hp, 3/60/575 volt, 1750 rpm motor. (1) Spray ball. Openings: top (4) 2'', (2) 3'', 8'' drive, 9'' hand hole with cover; 4" side bottom outlet. Mounted on 4 stainless steel legs, approximate 10'' discharge height.
