Location:
Bensenville, IL
Manufacturer:
DCI
Size:
1-1/2"

Specifications

Condition:
used
Serial number:
97PH5700B
Stock number:
45366001
Bottom:
Dished Bottom
Gallons:
105
Mounted:
Mounted on 4 Legs
Opening:
top (5) 1-1/2" tri-clamp, 2" tri-clamp, 4" tri-clamp, 4" sight glass, 16" manway with cover
Diameter:
46"
Presfulvac:
55
Year built:
1996
Outlet size:
1-1/2"
Opening cover:
Yes
Straight side:
8"
Top head style:
Dished Head
Outlet location:
Bottom
Internal pressure:
55/-15 psi
Internal temperature:
-20 to 300 degrees F
Horizontal or vertical:
Vertical
Material of construction:
316L Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

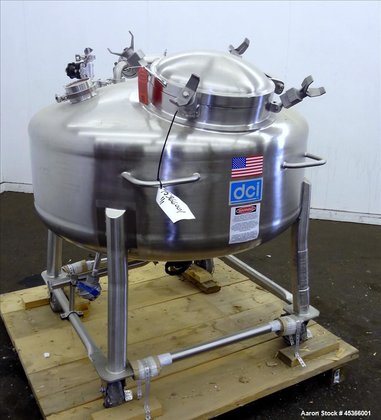

45366001 Used- DCI Pressure Tank, 400 Liter (105 Gallon), 316L Stainless Steel, Vertical. Approximately 46" diameter x 8" straight side, dished top and bottom. Internal rated 55/-15 psi at -20 to 300 degrees F. Openings: top (5) 1-1/2" tri-clamp, 2" tri-clamp, 4" tri-clamp, 4" sight glass, 16" manway with cover; 1-1/2" tri-clamp center bottom outlet. Mounted on 4 stainless steel legs with casters. Serial #97-PH5700B, National Board #3663, built 1996.
