Location:
Bensenville, IL
Manufacturer:
Lee tanks
Model:
117DBT
Size:
2"

Specifications

Condition:
used
Serial number:
C2541A
Stock number:
45706013
Bottom:
Dished Bottom
Gallons:
117
Diameter:
30"
Presfulvac:
15
Year built:
1995
Agitator hp:
1/3
Outlet size:
2"
Agitator rpm:
1725
Straight side:
35"
Agitator cycle:
60
Agitator phase:
3
Top head style:
Dished Head
Outlet location:
Bottom
Agitator voltage:
208-230/460 Volt
Agitator location:
Top Offset
Internal pressure:
15 PSI
Overal dimensions:
45" x 45" x 114"T
Internal temperature:
-20 to 300 degrees F
Agitator manufacturer:
Chemineer
Horizontal or vertical:
Vertical
Material of construction:
316 Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

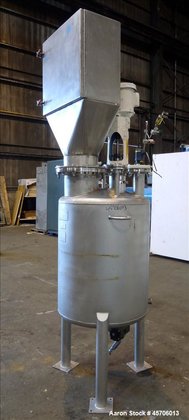

45706013 Used- Lee Industries Pressure Tank, 117 Gallon, Model 117DBT, 316 Stainless Steel, Vertical. Approximate 30" diameter x 35" straight side, dish top and bottom. Internal rated 15 psi at -20 to 300 degrees F, and designed for vacuum service. Off center top entering Chemineer agitator, no tag. Approximate 1" diameter shaft with a 3 blade prop, and mechanical seal. Driven by an approximate 1/3hp, 1/60/115-208/230 volt, 1725 rpm motor. Top openings: (2) 3", 4", 5", 10", side 2", 2" center bottom outlet. Mounted on 3 stainless steel legs. Serial#C-2541-A, built 1995.
