Location:
Bensenville, IL
Manufacturer:
Letsch
Size:
4"

Specifications

Condition:
used
Stock number:
42054017
Bottom:
Pitched Sloped Bottom
Gallons:
120
Mounted:
Mounted on 4 Legs
Opening:
top (4) 2'', (2) 3'', 8'' drive, 9'' hand hole with cover
Diameter:
29"
Mixer type:
4 Blade Turbine
Year built:
1986
Agitator hp:
7.5
Outlet size:
4"
Agitator rpm:
1745
Agitator type:
Top Entering
Straight side:
44"
Agitator model:
72C7.5V
Top head style:
Dished Head
Outlet location:
Bottom
Discharge height:
24 '
Internal pressure:
1 psi
Internal temperature:
180 degrees F
Agitator manufacturer:
Lightnin
Horizontal or vertical:
Vertical
Material of construction:
316L Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

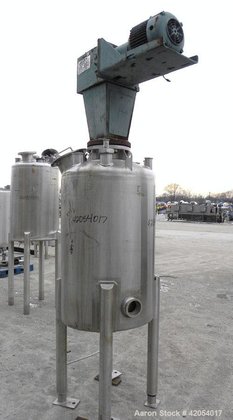

42054017 Used- Letsch/ Precision Stainless Tank, 120 gallon, 316L stainless steel, vertical. 29" diameter x 44" straight side, dish top, sloped bottom. Internal rated 1 psi at 180 deg F. Top entering Lightnin agitator, model 72C7.5V, ratio 6.43 to 1, output 272 rpm. 2" diameter shaft with (2) 4 blade turbines, driven by a 7.5 hp, 3/60/460 volt, 1745 rpmmotor. (2) Spray balls. Openings: top (4) 2'', (2) 3'', 8'' drive, 9'' hand hole with cover; 4" side bottom outlet. Mounted on 4 stainless steel legs, approximate 24'' discharge height.
