Location:
Bensenville, IL
Manufacturer:
Gaston County
Size:
2"

Specifications

Condition:
used
Serial number:
F291077802
Stock number:
45158001
Bottom:
Dished Bottom
Gallons:
105
Opening:
top (3) 2", (2) 4", 8", 6" drive
Diameter:
32"
Mixer type:
3 Blade Prop
Presfulvac:
102
Year built:
1980
Outlet size:
2"
Agitator type:
Top Entering
Straight side:
36"
Agitator model:
PMGA4-14
Top head style:
Dished Head
Outlet location:
Bottom
Agitator location:
Top Center
Internal pressure:
102 psi
Overal dimensions:
64"L x 48"W x 42"T
National board no.:
15128
Agitator serial no.:
B4AHA1538
Internal temperature:
350 Degrees F
Agitator manufacturer:
Philadelphia
Horizontal or vertical:
Vertical
Material of construction:
316 Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

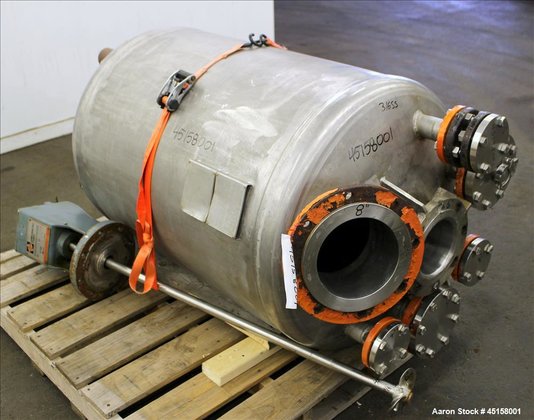

45158001 Used- Gaston County Pressure Tank, 400 Liter (105 Gallon), 316 Stainless Steel, Vertical. 32" Diameter x 36" straight side, dished top and bottom. Internal rated 102 psi/Full Vacuum at 350 degrees F. Top entering air operated Philadelphia agitator, model PMGA4-14, serial# B4AHA1538, output 350 rpm. Approximate 1-1/4" diameter X 43" long shaft with a 3 blade prop. (4) Sidewall baffles. Openings top (3) 2", (2) 4", 8", 6" drive. 2" Center bottom outlet. Provision for 4 legs. Serial# F29107-780-2, National Board# 15128, built 1980.
